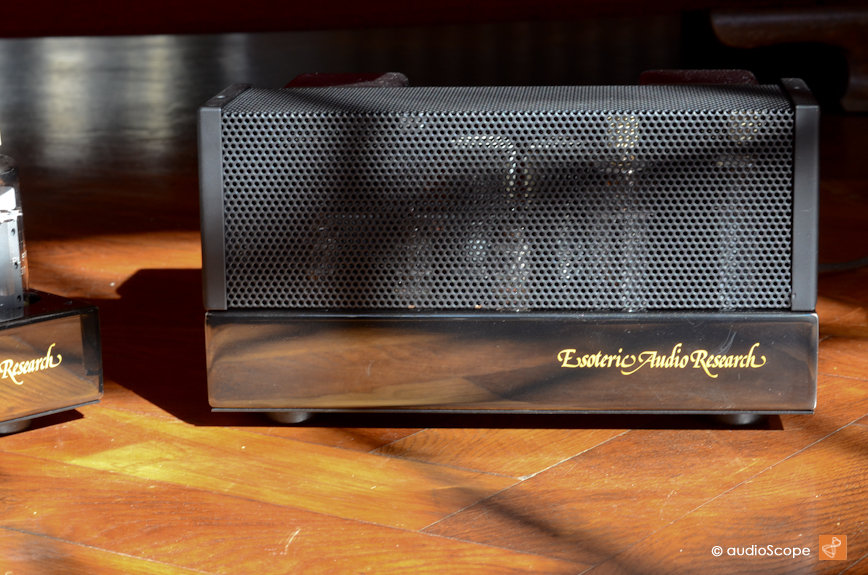

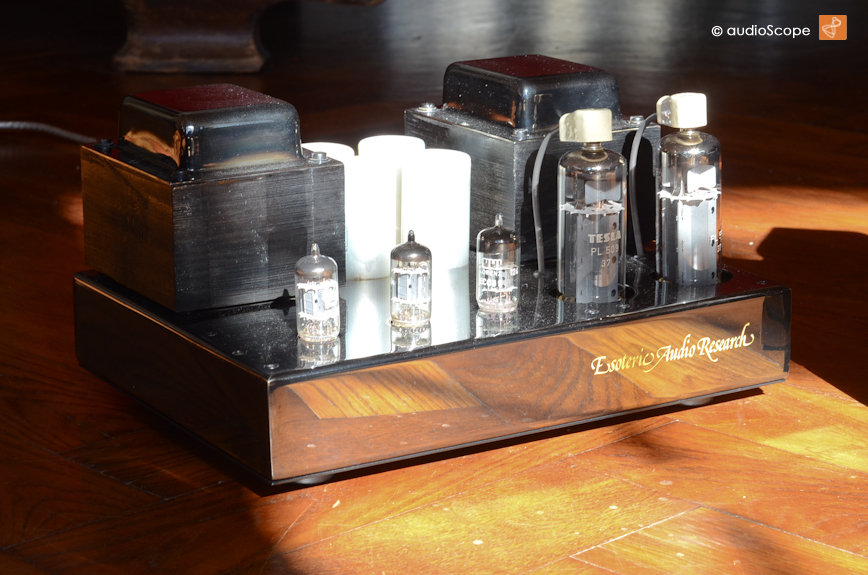

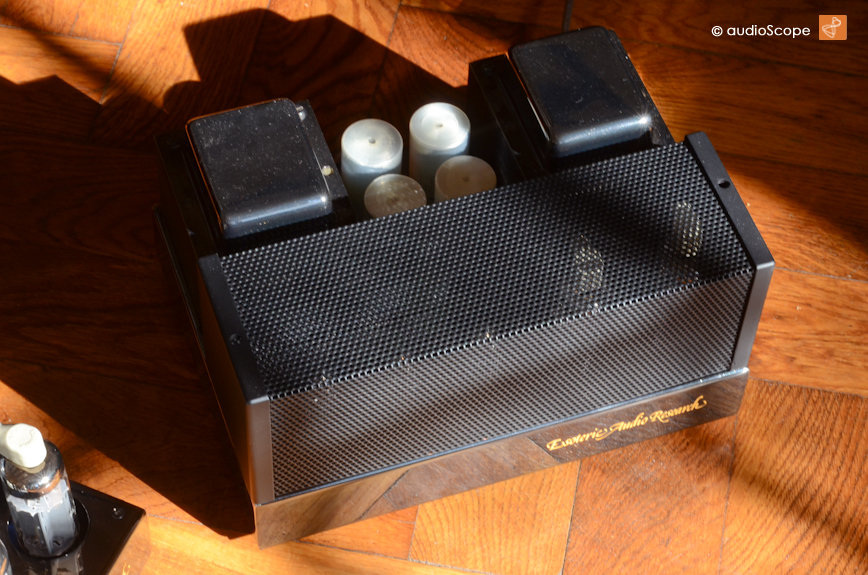

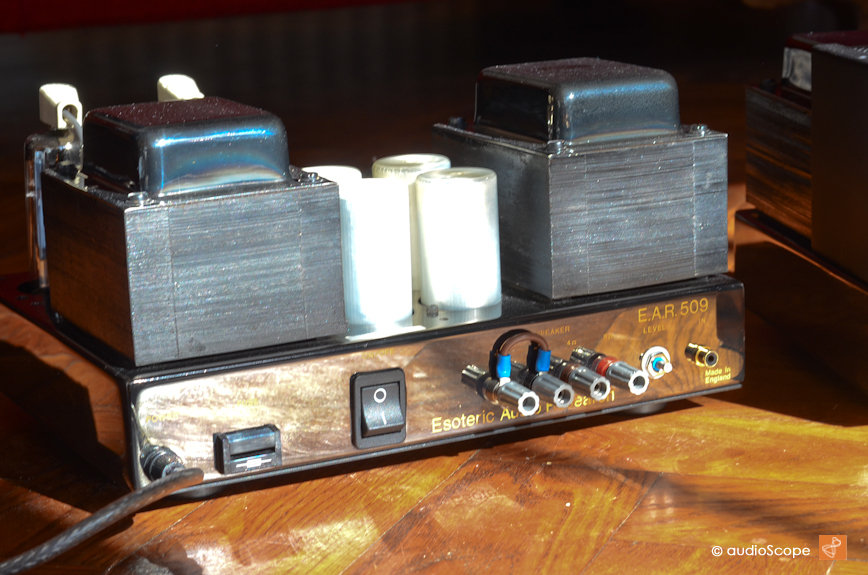

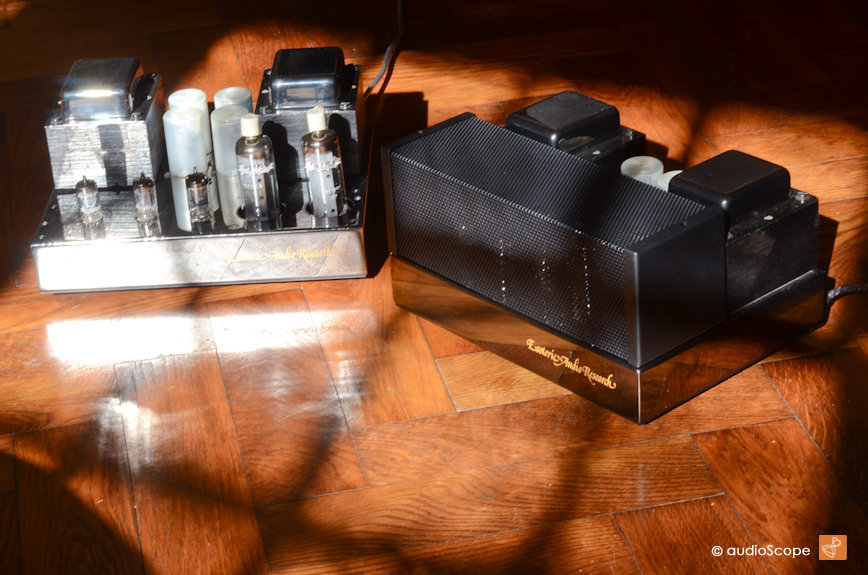

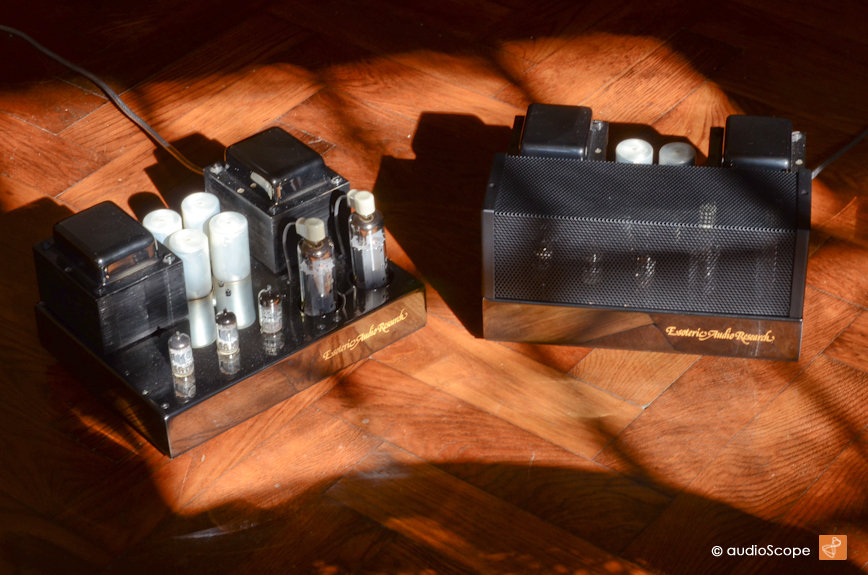

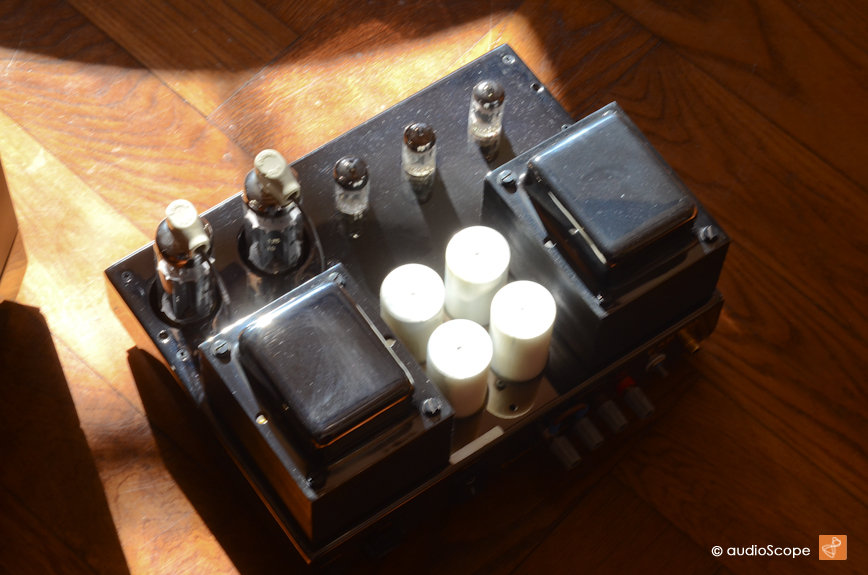

Esoteric Audio Research E.A.R. 509

Esoteric Audio Research E.A.R. 509
Click to enlarge

Esoteric Audio Research E.A.R. 509
Click to enlarge
Esoteric Audio Research E.A.R. 509
Click to enlarge
Esoteric Audio Research E.A.R. 509
Click to enlarge
Esoteric Audio Research E.A.R. 509
Click to enlarge
Esoteric Audio Research E.A.R. 509
Click to enlarge
Esoteric Audio Research E.A.R. 509
Click to enlarge

Esoteric Audio Research E.A.R. 509

Here comes a pair of Tim de Paravicini´s masterpieces in restored condition. Including the original boxes and manual! Hard to find better ones.

100 + 100 Watts Tube Power out of two PL 509 tubes.

Theses are the original amplifiers produced with the best possible materials in the 70ies! Not the reissues.

SPECIFICATIONS
Power Output (20Hz-20KHz<0.25% THD into Rate Load)...100W
Frequency Response 8Hz-30KHz............+0-1dB
Frequency Response 3Hz-80KHz..........+0-3dB
Power Bandwidth -3dB,0.5% THD.......12Hz-60KHz
I.M.D. at any level from 100mW-100W equivalent power...<0.2%
Output Damping Factor (0.4ohm + 4uH)....20
Signal to Noise Ratio down from 100W.......96dB
Input Sensitivity (Unbalanced).........1.2V
Input Impedance (Unbalanced).........25Kohm
Power Consumption ...................180V.A.
Weight .....................18kg
Size 12"(30cm)W........10"(25.4cm)D.......6"(15cm)H

They come with new output tubes. Reserved till August, 7th

For more information, please visit this products webpage.
